3D Surface

It is possible to show dependence of criteria or constraints on 2 parameters as 3D surface.

User is asked first for selection of the x-,y-, z-, and color-axis:

• x- and y-axis can be only stochastic design parameter

• z- and color-axis can be criterion or constraint

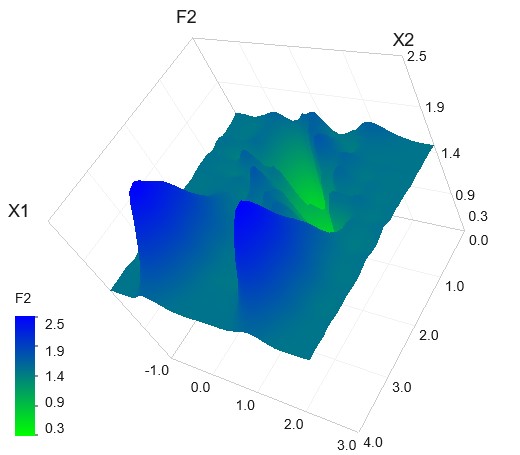

After selection the axis, the 3D surface plot will be shown. Left mouse click on the 3D surface plot to edit its options in the property windows:

• Frame: show the coordinate frame

• Line:  show the wire of the response surface

• Surface: show the surface of the response

• Legend: show the color legend

• Actual Value: show the red line for the actual value

• Support Points: show the support points of the response surface

• Color: color for the point

• Radius: radius of the point

• Min Color: color for the max. value

• Max Color: color for the min. value

• Decimal Place: show decimal place for the number

• E-Format: show E-format for the number

• Gridpoints: number of grid points of the response surface for each axis

• Auto-Scale: If Auto-Scale is set to True, the min. and max. values of the axis will be calculated automatically. If it is set to False, user can define these values manually.
