Analysis / Response Surface / 3D Volume |
It is possible to show dependence of criteria or constraints on 3 parameters as 3D volume.
User is asked first for selection of the x-,y-, z-, and color-axis:
x-, y- and z-axis can be only stochastic design parameter
color-axis can be criterion or constraint

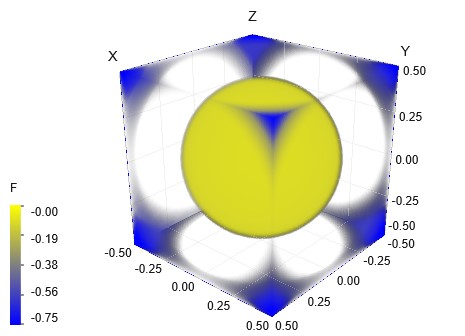

After selection the axis, the 3D volume plot will be shown. Left mouse click on the 3D plot to edit its options in the property windows:
Frame: show the coordinate frame
Legend: show the color legend
Decimal Place: show decimal place for the number
E-Format: show E-format for the number
Gridpoints: number of grid points of the response surface for each axis
Min Color: color for the max. value
Max Color: color for the min. value
Transfer Points: the number of points for discreting of the transfer function
Opacity: the opacity of the color shown in the background. It is linear between 0 and 255. 0 is not visible and 255 is full visible for the color.
Auto-Scale: If Auto-Scale is set to True, the min. and max. values of the axis will be calculated automatically. If it is set to False, user can define these values manually.
