Cluster Table

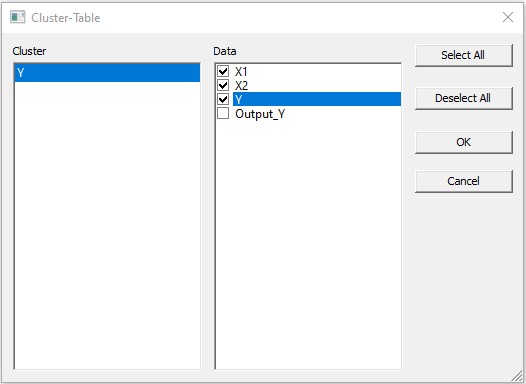

First of all, a dialog will open to select the elements from the experiment being displayed in the DOE-table. Toggle these elements and click OK-button:

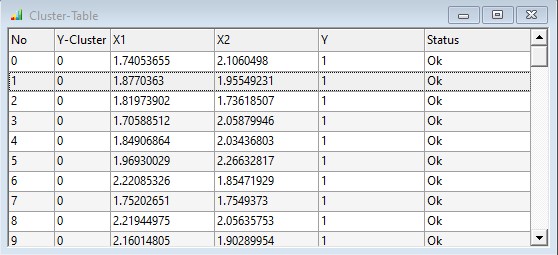

The cluster table will open and it contains all clusters for the selected level of the element. The first column shows the DOE data index and the second column shows the cluster number from the left to right of cluster tree. Double-click on a row of the table. This solution point will be highlighted by all other opened windows of the experiment. Select the items and right mouse click to open a context menu to remove the selected data from the cluster.

Left mouse clicking on the table, its options can be edited in the property windows.

• Cluster Level: User can select the cluster level for displaying all clusters on this level of the cluster tree. Level 0 shows all leaves.
