Data

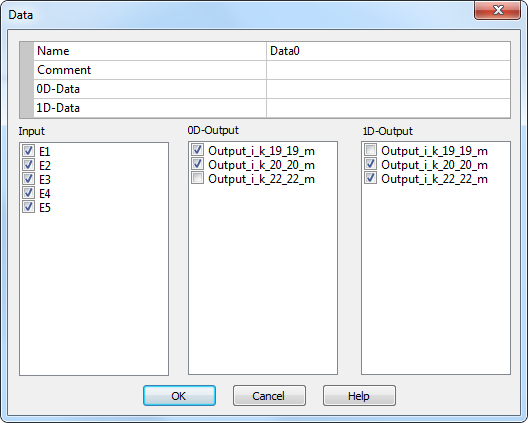

The node "Data" realizes the call of data in form of design of experiment. It is not intended to use for optimization. Thus, it is possible to import the data from measurement or from other simulations for building of the meta-model. Double-click on its symbol in the workflow editor to open the property window:

• Name

  It is the name of the node Data. This name may be defined basically once time for the entire experiment.



• Comment

  The comment for the node Data.



• Input

  The inserted stochastic parameters can be selected as input links for the node.



• 0D-Output

  The output variables can be selected as output links for 0D-data analysis.



• 1D-Output

  The output variables can be selected as output links for 1D-data analysis



• 0D-Data

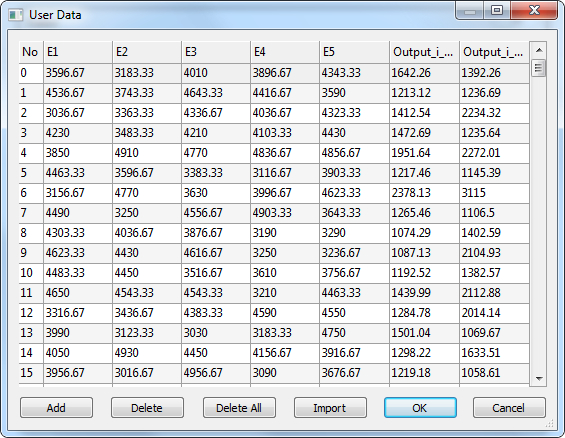

  Select the field "0D-Data" and press the button on the right side to open the data input dialog. An empty windows appears. The first column is the running number of the dataset. the further columns represent the selected input and output links for 0D-data analysis. The data can be now added, edited or deleted. Data from MS Excel can be imported using the button "Import". MS Excel must be installed on the computer. The first data block of the Excel table will be imported automatically into the datasheet.







• 1D-Data

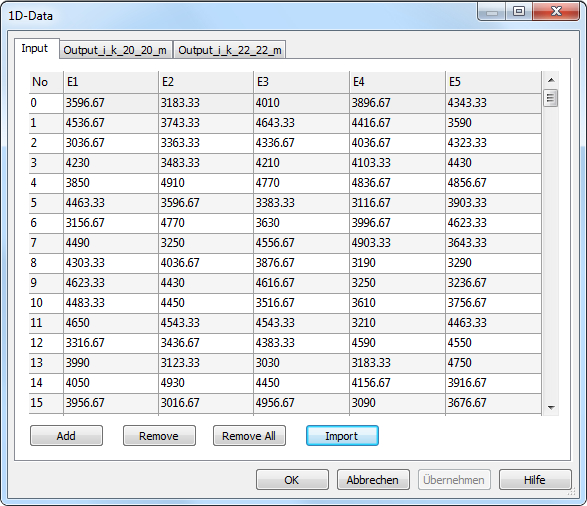

  Select the field "1D-Data" and press the button on the right side to open the data input dialog. An empty windows with some tabs will appear. The first tab contains input data. the columns of the datasheet present the running number and the selected input links. For each selected output link, there is a single data tab. In this tab, each column presents a dataset for 1D-signal. The data from MS Excel can also imported for each tab using the botton "Import".
