NetCOM

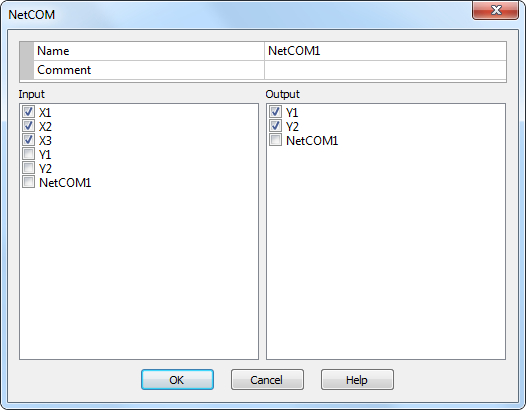

The element NetCOM represents the generic interface based on the .NET Framework technology. It contains different scripts (_Input, _SimCode and _Output), which will be performed by the .NET programming language Visual Basic or C#. Within, the extern programs with COM or .NET interface can be integrated in OptiY. Double-click on its symbol on the workflow editor to open the property window:

• Name

It is the name of the NetCOM. This name may be defined basically once time for the entire experiment.



• Comment

The comment for the NetCOM.



• Input

The input links as nominal and stochastic parameters, transfer or output variables of the experiment have to be selected here for NetCOM.



• Output

The output links as output variables of the experiment can be selected here for NetCOM.

After finishing, the scripts of the element NetCOM can be edited and tested using the Script Editor.
