Sensitivity Chart

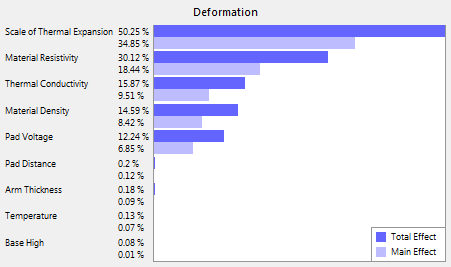

An empty window will be open. Use drag & drop to insert a element of the experiment as criteria or constraints from the explorer into the opened window. A Pareto chart of sensitivities is generated for the inserted element related to all stochastic design parameters. The sensitivities of the inserted element are shown as ranked bars with main and total effect. The values are given in percentage on the left side.

Left mouse click on the sensitivity chart to edit its options in the property windows:

• Color: the color of the displayed bars can be changed

Global Sensitivity Chart

For all constraints and criteria  f1, f2, f3, ..., fn and ist weighting factors w1, w2, w3, ..., wn of an experiment. The global function results from the weighted sum of all constraints and criteria:

f = w1*f1 + w2*f2 + w3*f3 +  ... + wn*fn

The global sensitivity chart shows the sensitivity of all experiment parameters related to this global function f.
