Analysis / Taguchi Quality Method/ S/N Ratio |

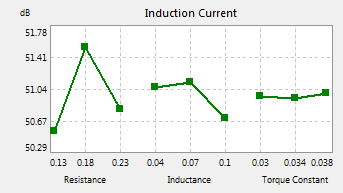

The menu is available only by Taguchi Design. An empty window will be open. Use drag & drop to insert a element of the experiment as criteria or constraints from the explorer into the opened window. Its S/N ratio for Taguchi quality method [55-58] will be shown:
Left mouse click on the pdf plot
to edit its options in the property
windows:
Color: the color of the line can be changed
Auto-Scale: If Auto-Scale is set to True, the min. and max. values of the Y-axis will be calculated automatically fitting to the windows. If it is set to False, user can define these values manually.
