Menu: |
Analysis / Taguchi Quality Method / Sensitivity |

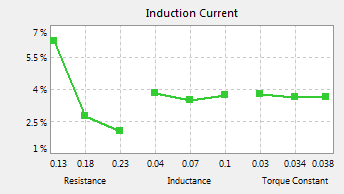

The menu is available only by Taguchi Design. An empty window will be open. Use drag & drop to insert a criterion oder constraint of the experiment from the explorer into the opened window. Its Taguchi sensitivity will be shown. The sensitivity is measured by the percentage quotion of the variance by the value of the control factor for all noise factors to the total variance by all control and noise factors.
Left mouse click on the
graphics
to edit its options in the property
windows:
Color: the color of the line can be changed
Auto-Scale: If Auto-Scale is set to True, the min. and max. values of the Y-axis will be calculated automatically fitting to the windows. If it is set to False, user can define these values manually.
