Add Points

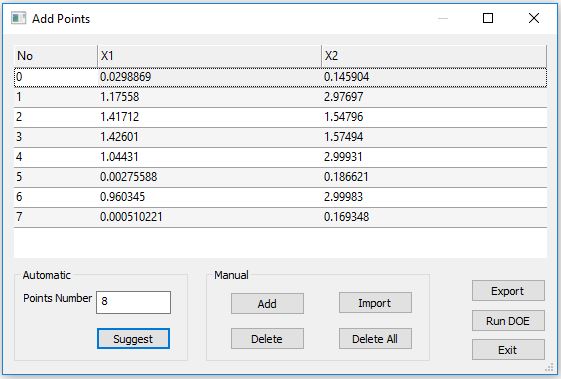

A dialog window will open to add more points of the design space for running of design of experiment based on existing response surfaces.This feature gives users the possibility to make the response surfaces better after running the experiment.

There are 2 options for adding more points for the experiment:

• Automatic Suggestion: This feature bases on the algorithms of adaptive Gaussian process. user can specify the number of points for each constraint or criterion, which is approximated only by Gassian process. After click the button "Suggest", the points will be calculated internally and displayed on the table. These found points are searched to get the maximal uncertainties of the approximation.

• Manual Adding: user can also add and edit the points manually ("Add"-Button) or import data from MS Excel ("Import"-Button).

After adding more points for the experiment, these poinnts can be export for other using ("Export"-button) or they can be run by original model and add to the existing data-table of the design of experiment ("Run DOE"-Button).
