Analysis / Fatigue Life Prediction / Failure Probability |

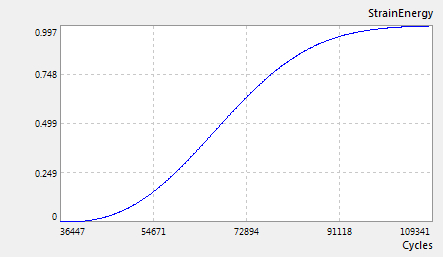

An empty window will be open. Using a drag & drop operation put an element Strain Energy Density from the explorer to the opened window. If the cumulative failure probability will be displayed. The X-axis is the cycle number. The min. cycle number is the number of cycle for failure free life. the max cycle number can be edited as a option of the diagram is the product of the factor and the min cycle number. By moving the left mouse holding pressed, user can zoom the signal window. With the right mouse click on the diagram, the automatically scaling with its min and max values of the signal will be activated.
Options of the diagram
Click the left mouse button on the
diagram to edit its options in the property windows:
| Line Color : | the color of the signal |
| Max-Cycle Factor : | the max cycle number is the product of the factor and the min cycle number. |
| Auto-Scale : |
False = axis boundaries are set
manually True = axis boundaries are set automatically to its max and min value |
